STP5NC90Z - N-Channel MOSFET

Name: STP5NC90Z
SKU: STP5NC90Z-535887

ST Microelectronics

📥 Download Datasheet

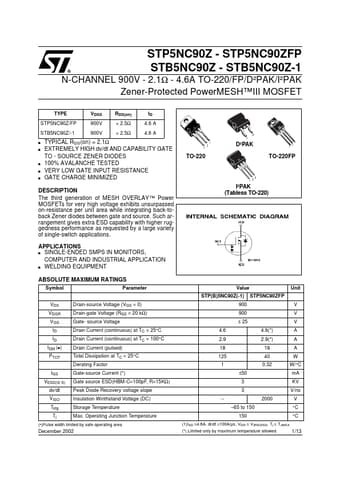

STP5NC90Z Datasheet Preview — Preview of STP5NC90Z PDF

Datasheet Details

Part number	STP5NC90Z
Manufacturer	STMicroelectronics
File Size	403.70 KB
Description	N-Channel MOSFET
Datasheet	STP5NC90Z_STMicroelectronics.pdf

STP5NC90Z Product details

Description

The third generation of MESH OVERLAY™ Power MOSFETs for very high voltage exhibits unsurpassed on-resistance per unit area while integrating back-toback Zener diodes between gate and source.

Features

OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener voltage is appropiate to achieve an efficient and cost-effective intervention to protect the device’s integrity. These integrated Zener diodes thus avoid the usage of external components. 3/13 STP5NC90Z.
