STP5NC70ZFP

N-CHANNEL MOSFET

STP5NC70ZFP Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

STP5NC70ZFP General Description

The third generation of MESH OVERLAY™ Power MOSFETs for very high voltage exhibits unsurpassed on-resistance per unit area while integrating back-toback Zener diodes between gate and source. Such arrangement gives extra ESD capability with higher ruggedness performance as requested by a large variet.

STP5NC70ZFP Datasheet (277.84 KB)

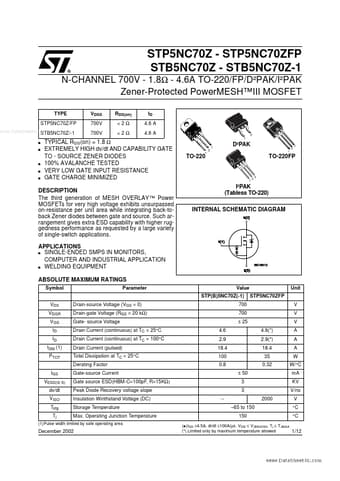

Preview of STP5NC70ZFP PDF

Datasheet Details

Part number:

STP5NC70ZFP

Manufacturer:

STMicroelectronics ↗

File Size:

277.84 KB

Description:

N-channel mosfet.
STP5NC70Z - STP5NC70ZFP STB5NC70Z - STB5NC70Z-1 N-CHANNEL 700V - 1.8Ω - 4.6A TO-220/FP/D²PAK/I²PAK Zener-Protected PowerMESH™III MOSFET TYPE STP5NC70Z.
