STP60NE03L-12 - N-CHANNEL Power MOSFET

STP60NE03L-12 Description

® STP60NE03L-12 N - CHANNEL 30V - 0.009 Ω - 60A - T0-220 STripFET™ POWER MOSFET T YPE STP60NE03L-12 s s s s s s s s V DSS 30 V R DS(on) < 0.012 Ω .
This Power MOSFET is the latest development of STMicroelectronics unique ”Single Feature Size™” strip-based process.

STP60NE03L-12 Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s DC-DC & DC-AC CONVERTERS s AUTOMOTIVE ENVIRONMENT INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID I DM (
* ) P tot dv/dt Ts tg Tj Parameter Drain-source Voltage (VGS = 0) Drain- gate Voltag

📥 Download Datasheet

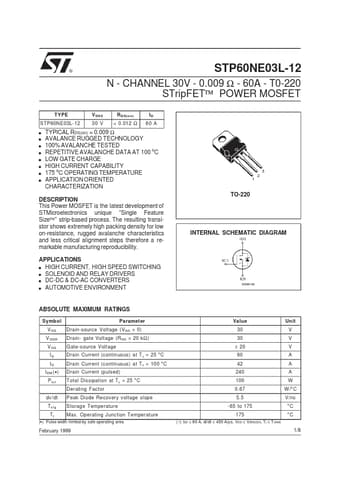

Preview of STP60NE03L-12 PDF
