STP60NS04ZB N-CHANNEL CLAMPED MOSFET

ST Microelectronics

Description

STP60NS04ZB N-channel clamped - 10mΩ - 60A - TO-220 Fully protected Mesh Overlay™ Power MOSFET General .
This fully clamped Power MOSFET is produced by using the latest advanced Company’s Mesh Overlay process which is based on a novel strip layout.

📥 Download Datasheet

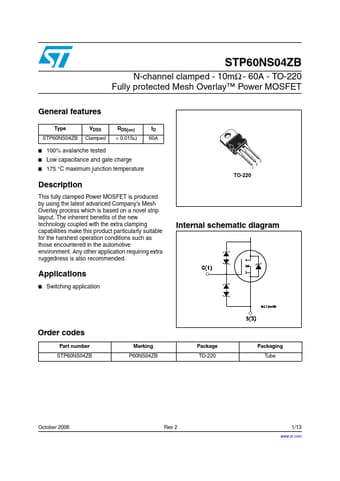

STP60NS04ZB Datasheet Preview — Preview of STP60NS04ZB PDF

Datasheet Specifications

Part number: STP60NS04ZB
Manufacturer: STMicroelectronics ↗
File Size: 231.79 KB
Datasheet: STP60NS04ZB_STMicroelectronics.pdf
Description: N-CHANNEL CLAMPED MOSFET

Features

* Type VDSS STP60NS04ZB Clamped RDS(on) < 0.015Ω ID 60A
* 100% avalanche tested
* Low capacitance and gate charge

Applications

* Switching application 3 2 1 TO-220 Internal schematic diagram Order codes Part number STP60NS04ZB Marking P60NS04ZB Package TO-220 Packaging Tube October 2006 Rev 2 1/13 www. st. com 13 Contents Contents STP60NS04ZB 1 Electrical ratings
