STP78N75F4 - 75V N-Channel Power MOSFET

ST Microelectronics

The STP78N75F4 by ST Microelectronics is a 75V N-Channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

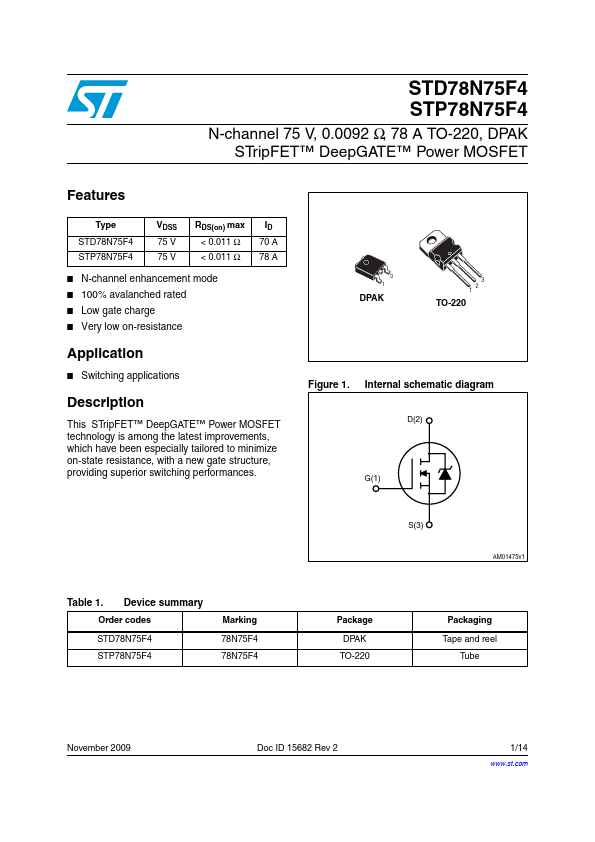

STP78N75F4 75V N-Channel Power MOSFET by ST Microelectronics - Datasheet Preview — Official preview page of the **STP78N75F4** 75V N-Channel Power MOSFET datasheet (ST Microelectronics).

Datasheet Details

Part number	STP78N75F4
Manufacturer	STMicroelectronics
File Size	546.77 KB
Description	75V N-Channel Power MOSFET
Datasheet	STP78N75F4_STMicroelectronics.pdf

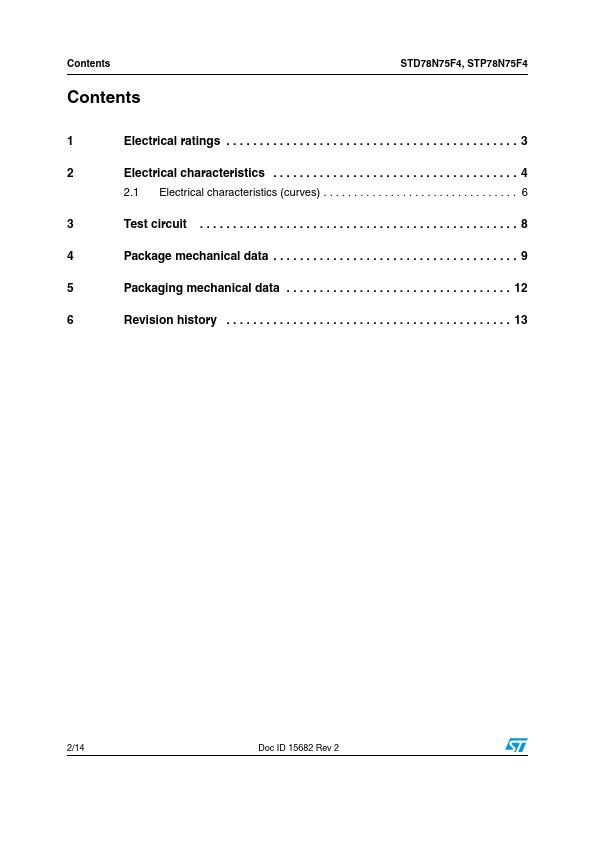

Additional preview pages of the STP78N75F4 datasheet.

STP78N75F4 Product details

Description

This STripFET™ DeepGATE™ Power MOSFET technology is among the latest improvements, which have been especially tailored to minimize on-state resistance, with a new gate structure, providing superior switching performances.

Features

Type STD78N75F4 STP78N75F4 VDSS 75 V 75 V RDS(on) max < 0.011 Ω < 0.011 Ω ID 70 A 78 A.
N-channel enhancement mode.
100% avalanched rated.
Low gate charge.
Very low on-resistance.
