STP78NF55-08 - N-CHANNEL POWER MOSFET

STMicroelectronics

The STP78NF55-08 by STMicroelectronics is a N-CHANNEL POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STP78NF55-08 N-CHANNEL POWER MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **STP78NF55-08** N-CHANNEL POWER MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STP78NF55-08
Manufacturer	STMicroelectronics
File Size	787.28 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STP78NF55-08-STMicroelectronics.pdf
Additional preview pages of the STP78NF55-08 datasheet.

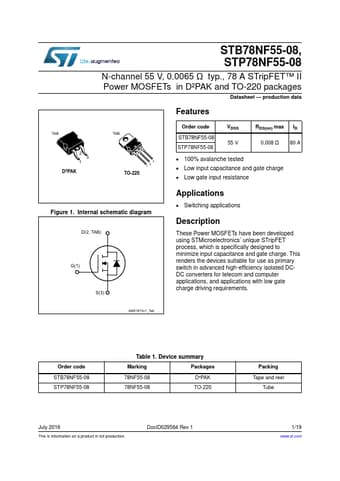

STP78NF55-08 Product details

Description

These Power MOSFETs have been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitance and gate charge.

Features

7$% D2PAK 7$% TO-220 Order code STB78NF55-08 STP78NF55-08 VDSS 55 V RDS(on) max ID 0.008 Ω 80 A.
100% avalanche tested.
Low input capacitance and gate charge.
Low gate input resistance Figure 1. Internal schematic diagram '7$%.
6.
