STP7NE10 N-CHANNEL MOSFET

STP7NE10 Description

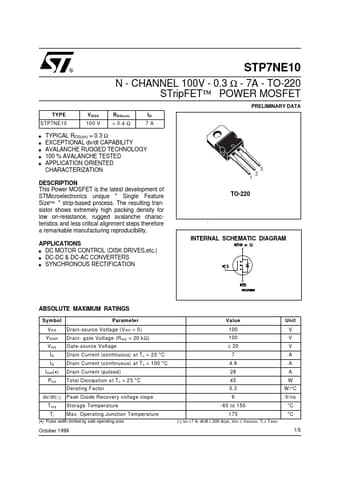

® STP7NE10 N - CHANNEL 100V - 0.3 Ω - 7A - TO-220 STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STP7NE10 s s s s s V DSS 100 V R DS(on) < 0.4 Ω ID.
This Power MOSFET is the latest development of STMicroelectronics unique " Single Feature Size™ " strip-based process.

STP7NE10 Applications

* s DC MOTOR CONTROL (DISK DRIVES,etc. ) s DC-DC & DC-AC CONVERTERS s SYNCHRONOUS RECTIFICATION TO-220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR VGS ID ID I DM (
* ) P tot dv/dt( 1 ) T st g Tj Parameter Drain-source Voltage (V GS = 0) Drain- gate Voltage (R GS = 2
