STP7NE10L N-CHANNEL MOSFET

ST Microelectronics

Description

® STP7NE10L N - CHANNEL 100V - 0.3 Ω - 7A - TO-220 STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STP7NE10L s s s s s V DSS 100 V R DS(on) < 0.4 Ω .
This Power MOSFET is the latest development of STMicroelectronics unique " Single Feature Size™ " strip-based process.

📥 Download Datasheet

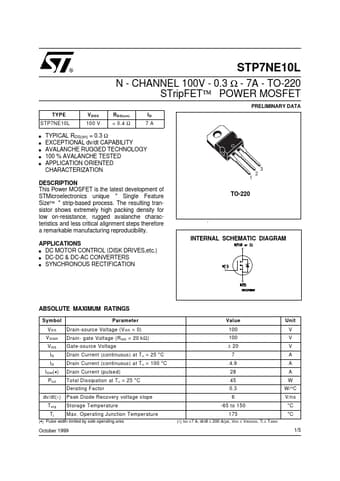

STP7NE10L Datasheet Preview — Preview of STP7NE10L PDF

Datasheet Specifications

Part number: STP7NE10L
Manufacturer: STMicroelectronics ↗
File Size: 50.33 KB
Datasheet: STP7NE10L_STMicroelectronics.pdf
Description: N-CHANNEL MOSFET

Applications

* s DC MOTOR CONTROL (DISK DRIVES,etc. ) s DC-DC & DC-AC CONVERTERS s SYNCHRONOUS RECTIFICATION TO-220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR VGS ID ID I DM (
* ) P tot dv/dt(1 ) T st g Tj Parameter Drain-source Voltage (V GS = 0) Drain- gate Voltage (R GS = 20
