STP8NK100Z Datasheet, Mosfet, ST Microelectronics

STP8NK100Z Features

  • Mosfet Type VDSS RDS(on) ID Pw STF8NK100Z 1000 V <1.85 Ω 6.5 A Note 1 40 W STP8NK100Z 1000 V <1.85 Ω 6.5 A 160 W
  • EXTREMELY HIGH dv/dt CAPABILITY 3 3 1

PDF File Details

Part number:

STP8NK100Z

Manufacturer:

STMicroelectronics ↗

File Size:

314.74kb

Download:

📄 Datasheet

Description:

N-channel zener-protected supermesh tm mosfet. The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout. In addition

Datasheet Preview: STP8NK100Z 📥 Download PDF (314.74kb)

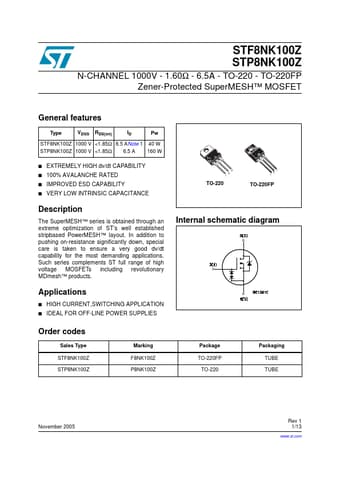

Page 2 of STP8NK100Z Page 3 of STP8NK100Z

STP8NK100Z Application

  • Applications Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. Internal schematic diagram A
