STP8NK80Z - N-CHANNEL POWER MOSFET

ST Microelectronics

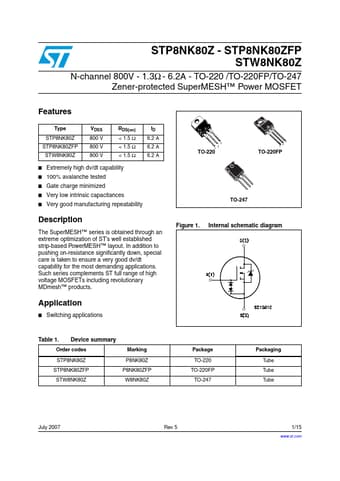

STP8NK80Z Datasheet Preview — Preview of STP8NK80Z PDF

Datasheet Details

Part number	STP8NK80Z
Manufacturer	STMicroelectronics ↗
File Size	395.37 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STP8NK80Z_STMicroelectronics.pdf

STP8NK80Z Product details

Description

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. Switching applications TO-220 3 2 1 TO-220FP TO-247 Figure 1. Internal schematic diagram Table 1

Features

Type STP8NK80Z STP8NK80ZFP STW8NK80Z VDSS 800 V 800 V 800 V RDS(on) < 1.5 Ω < 1.5 Ω < 1.5 Ω ID 6.2 A 6.2 A 6.2 A.
Extremely high dv/dt capability.
100% avalanche tested.
Gate charge minimized.
Very low intrinsic capacitances.
Very good manufacturing repeatability.
