STP8NK85Z Datasheet, Mosfet, ST Microelectronics

STP8NK85Z Features

  • Mosfet TYPE STP8NK85Z STF8NK85Z s s s s s s s Figure 1: Package ID 6.7A 6.7A Pw 150 W 35 W VDSS 850 V 850 V RDS(on) <1.4 Ω <1.4 Ω TYPICAL RDS(on) = 1.1Ω EXTREMELY HIGH dv/dt CAPABILITY IMP

PDF File Details

Part number:

STP8NK85Z

Manufacturer:

STMicroelectronics ↗

File Size:

353.10kb

Download:

📄 Datasheet

Description:

N-channel zener-protected supermesh mosfet. The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition

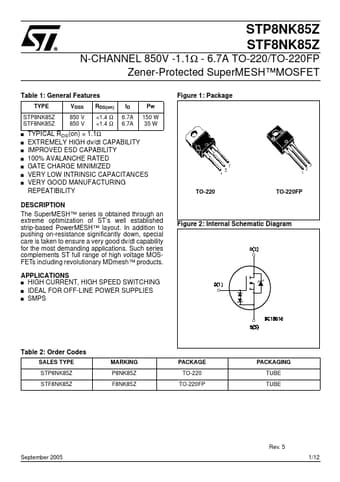

Datasheet Preview: STP8NK85Z 📥 Download PDF (353.10kb)
Page 2 of STP8NK85Z Page 3 of STP8NK85Z

STP8NK85Z Application

  • Applications Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. APPLICATIONS s HIGH CURRENT, H
