STPS61H100CW Datasheet, Rectifier, ST Microelectronics

STPS61H100CW Features

  • Rectifier
  • 2 x 30 A 100 V 175°C 0.67 V A2 K
  • HIGH JUNCTION TEMPERATURE CAPABILITY LOW LEAKAGE CURRENT GOOD TRADE OFF BETWEEN LEAKAGE CURRENT

PDF File Details

Part number:

STPS61H100CW

Manufacturer:

STMicroelectronics ↗

File Size:

171.83kb

Download:

📄 Datasheet

Description:

High voltage power schottky rectifier. Dual center tap Schottky rectifiers suited for high frequency switch mode power supply. Packaged in TO-247, this devices is intended

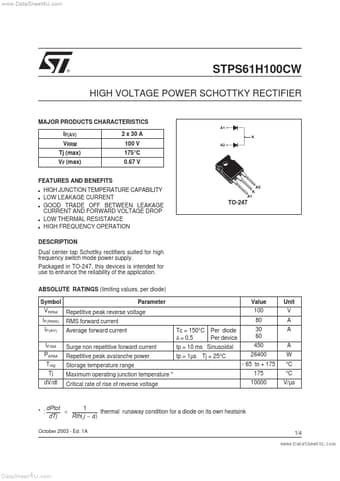

Datasheet Preview: STPS61H100CW 📥 Download PDF (171.83kb)
Page 2 of STPS61H100CW Page 3 of STPS61H100CW
