STPS6045C - Power Schottky Rectifier

This page provides the datasheet information for the STPS6045C, a member of the STPS6045 Power Schottky Rectifier family.

Datasheet Summary

Description

Dual center tap Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters.

Packaged in TO-247, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

Table 1.

Features

  • Very small conduction losses.
  • Negligible switching losses.
  • Extreme fast switching.
  • Low thermal resistance.
  • Avalanche capability specified STPS6045C Power Schottky Rectifier Datasheet - production data.

📥 Download Datasheet

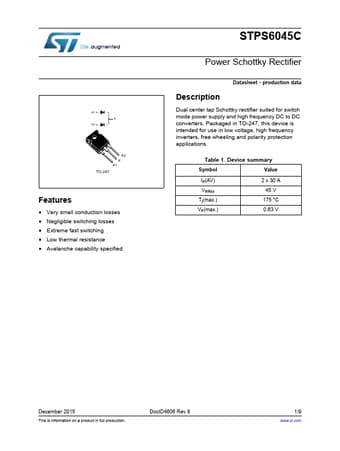

Datasheet preview – STPS6045C
