STPS60170C - High voltage power Schottky rectifier

Datasheet Summary

Description

This dual diode Schottky rectifier is suited for high frequency switched mode power supplies.

Packaged in TO-220AB this device is intended for use to enhance the reliability of the application.

Features

  • High junction temperature capability.
  • Good trade-off between leakage current and forward voltage drop.
  • Low leakage current.
  • Low thermal resistance.
  • Avalanche capability specified.
  • High frequency operation.

📥 Download Datasheet

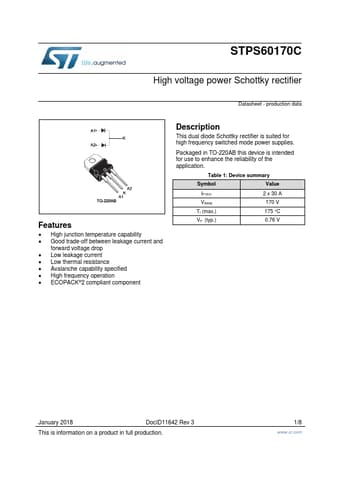

Datasheet preview – STPS60170C

Datasheet Details

Part number STPS60170C
Manufacturer STMicroelectronics
File Size 508.41 KB
Description High voltage power Schottky rectifier
Datasheet download datasheet STPS60170C Datasheet
Additional preview pages of the STPS60170C datasheet.
