STPS60150C - 150V power Schottky rectifier

Datasheet Summary

Description

This dual center tab Schottky rectifier is suited for high frequency switched mode power supplies.

Packaged in TO-220AB, the STPS60150C combines high current rating and low volume to enhance both reliability and power density of the application.

Features

  • High junction temperature capability.
  • Low leakage current.
  • High voltage capabilities.
  • Low thermal resistance.
  • High frequency operation.
  • Avalanche specification.

📥 Download Datasheet

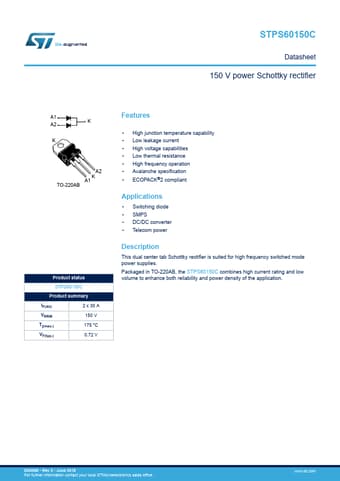

Datasheet preview – STPS60150C

Datasheet Details

Part number STPS60150C
Manufacturer STMicroelectronics
File Size 194.74 KB
Description 150V power Schottky rectifier
Datasheet download datasheet STPS60150C Datasheet
Additional preview pages of the STPS60150C datasheet.

📁 Similar Datasheet

  • STPS60170C - High voltage power Schottky rectifier (STMicroelectronics)
  • STPS60170CT - High voltage power Schottky rectifier (STMicroelectronics)
  • STPS60170CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • STPS6045C - Power Schottky Rectifier (STMicroelectronics)
  • STPS6045CW - POWER SCHOTTKY RECTIFIER (STMicroelectronics)
  • STPS6045HR - Aerospace 2 x 30 A - 45 V Schottky rectifier (STMicroelectronics)
  • STPS60A150CHR - Schottky rectifier (STMicroelectronics)
  • STPS60SM200C - Power Schottky rectifier (STMicroelectronics)
  • STPS61150C - power Schottky rectifier (STMicroelectronics)
  • STPS61150CW - Schottky Barrier Rectifier (INCHANGE)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text
STPS60150C Datasheet 150 V power Schottky rectifier A1 A2 K K A2 K A1 TO-220AB Product status STPS60150C Product summary IF(AV) 2 x 30 A VRRM 150 V Tj(max.) 175 °C VF(typ.) 0.72 V Features • High junction temperature capability • Low leakage current • High voltage capabilities • Low thermal resistance • High frequency operation • Avalanche specification • ECOPACK®2 compliant Applications • Switching diode • SMPS • DC/DC converter • Telecom power Description This dual center tab Schottky rectifier is suited for high frequency switched mode power supplies. Packaged in TO-220AB, the STPS60150C combines high current rating and low volume to enhance both reliability and power density of the application.
