STPS61150C - power Schottky rectifier

This page provides the datasheet information for the STPS61150C, a member of the STPS61150CW power Schottky rectifier family.

Datasheet Summary

Description

This dual diode common cathode Schottky rectifier is optimized for high frequency switched mode power supplies.

Packaged in TO-247, the STPS61150C combines high current rating and low volume to enhance both reliability and power density of the application.

Features

  • High junction temperature capability.
  • Low leakage current.
  • Good trade off between leakage current and forward voltage drop.
  • Low thermal resistance.
  • High frequency operation.

📥 Download Datasheet

Datasheet preview – STPS61150C

Datasheet Details

Part number STPS61150C
Manufacturer STMicroelectronics
File Size 400.14 KB
Description power Schottky rectifier
Datasheet download datasheet STPS61150C Datasheet
Additional preview pages of the STPS61150C datasheet.

📁 Similar Datasheet

  • STPS61150CW - power Schottky rectifier (ST Microelectronics)
  • STPS61150CW - Schottky Barrier Rectifier (INCHANGE)
  • STPS61H100CW - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS61L45C - Power Schottky rectifier (ST Microelectronics)
  • STPS61L60C - Low drop power Schottky rectifier (ST Microelectronics)
  • STPS60150C - 150V power Schottky rectifier (ST Microelectronics)
  • STPS60170CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • STPS6030CW - LOW DROP POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS6045 - Power Schottky Rectifier (ST Microelectronics)
  • STPS60H100C - 100V power Schottky rectifier (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

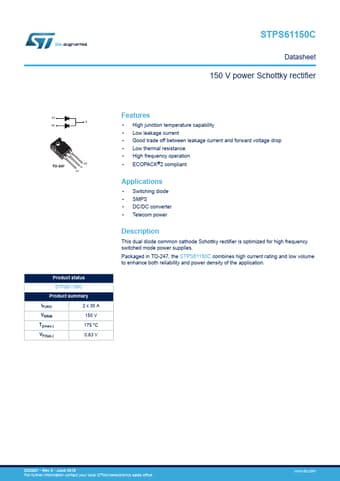

STPS61150C Datasheet 150 V power Schottky rectifier A1 K A2 TO-247 A2 K A1 Product status STPS61150C Product summary IF(AV) 2 x 30 A VRRM 150 V Tj(max.) 175 °C VF(typ.) 0.63 V Features • High junction temperature capability • Low leakage current • Good trade off between leakage current and forward voltage drop • Low thermal resistance • High frequency operation • ECOPACK®2 compliant Applications • Switching diode • SMPS • DC/DC converter • Telecom power Description This dual diode common cathode Schottky rectifier is optimized for high frequency switched mode power supplies. Packaged in TO-247, the STPS61150C combines high current rating and low volume to enhance both reliability and power density of the application.
