STPS60170CT - High voltage power Schottky rectifier

This page provides the datasheet information for the STPS60170CT, a member of the STPS60170C High voltage power Schottky rectifier family.

Datasheet Summary

Description

This dual diode Schottky rectifier is suited for high frequency switched mode power supplies.

Packaged in TO-220AB this device is intended for use to enhance the reliability of the application.

Features

  • High junction temperature capability.
  • Good trade-off between leakage current and forward voltage drop.
  • Low leakage current.
  • Low thermal resistance.
  • Avalanche capability specified.
  • High frequency operation.

📥 Download Datasheet

Datasheet preview – STPS60170CT

Datasheet Details

Part number STPS60170CT
Manufacturer STMicroelectronics
File Size 508.41 KB
Description High voltage power Schottky rectifier
Datasheet download datasheet STPS60170CT Datasheet
Additional preview pages of the STPS60170CT datasheet.

📁 Similar Datasheet

  • STPS60170CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • STPS60150C - 150V power Schottky rectifier (ST Microelectronics)
  • STPS6030CW - LOW DROP POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS6045 - Power Schottky Rectifier (ST Microelectronics)
  • STPS60H100C - 100V power Schottky rectifier (ST Microelectronics)
  • STPS60L15CW - LOW DROP OR-ing POWER SCHOTTKY DIODE (ST Microelectronics)
  • STPS60L30CW - LOW DROP POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS60L40CW - LOW DROP POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS60L45CW - LOW DROP POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS61150CW - power Schottky rectifier (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

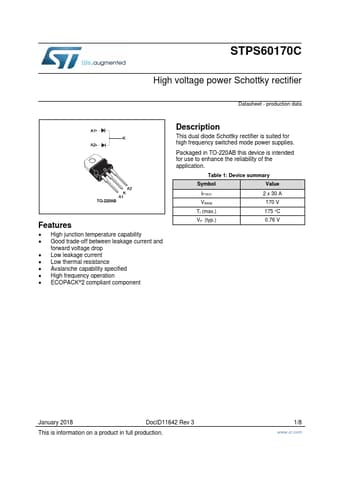

STPS60170C High voltage power Schottky rectifier Datasheet - production data Features  High junction temperature capability  Good trade-off between leakage current and forward voltage drop  Low leakage current  Low thermal resistance  Avalanche capability specified  High frequency operation  ECOPACK®2 compliant component Description This dual diode Schottky rectifier is suited for high frequency switched mode power supplies. Packaged in TO-220AB this device is intended for use to enhance the reliability of the application. Table 1: Device summary Symbol Value IF(AV) VRRM Tj (max.) VF (typ.) 2 x 30 A 170 V 175 °C 0.76 V January 2018 DocID11642 Rev 3 This is information on a product in full production. 1/8 www.st.
