STPS6045HR - Aerospace 2 x 30 A - 45 V Schottky rectifier

Datasheet Summary

Description

This power Schottky rectifier is designed and packaged to comply with the ESCC5000 specification for aerospace products.

Housed in a hermetically sealed surface mount package, it is ideal for use in applications for aerospace and other harsh environments.

Features

  • Forward current: 2 x 30 A Repetitive peak voltage: 45 V Low forward voltage drop: 0.75 V Maximum junction temperature: 175 °C Negligible switching losses Low capacitance High reverse avalanche surge capability Hermetic package Target radiation qualification:.
  • 150 krad (Si) low dose rate.
  • 1 Mrad high dose rate ESCC qualified STPS6045CFSY1 STPS6045CFSYHRB TO-254 Figure 1. Device configuration.

📥 Download Datasheet

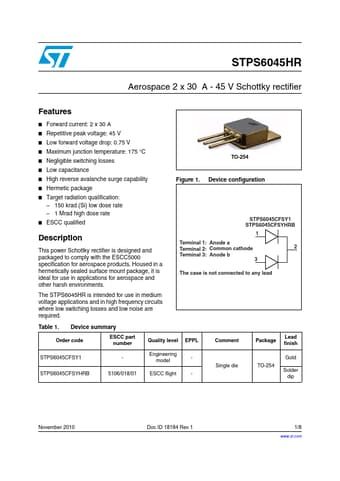

Datasheet preview – STPS6045HR

Datasheet Details

Part number STPS6045HR
Manufacturer STMicroelectronics
File Size 138.50 KB
Description Aerospace 2 x 30 A - 45 V Schottky rectifier
Datasheet download datasheet STPS6045HR Datasheet
Additional preview pages of the STPS6045HR datasheet.

📁 Similar Datasheet

  • STPS6045 - Power Schottky Rectifier (ST Microelectronics)
  • STPS60150C - 150V power Schottky rectifier (ST Microelectronics)
  • STPS60170CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • STPS6030CW - LOW DROP POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS60H100C - 100V power Schottky rectifier (ST Microelectronics)
  • STPS60L15CW - LOW DROP OR-ing POWER SCHOTTKY DIODE (ST Microelectronics)
  • STPS60L30CW - LOW DROP POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS60L40CW - LOW DROP POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS60L45CW - LOW DROP POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS61150CW - power Schottky rectifier (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STPS6045HR Aerospace 2 x 30 A - 45 V Schottky rectifier Features ■ ■ ■ ■ ■ ■ ■ ■ ■ Forward current: 2 x 30 A Repetitive peak voltage: 45 V Low forward voltage drop: 0.75 V Maximum junction temperature: 175 °C Negligible switching losses Low capacitance High reverse avalanche surge capability Hermetic package Target radiation qualification: – 150 krad (Si) low dose rate – 1 Mrad high dose rate ESCC qualified STPS6045CFSY1 STPS6045CFSYHRB TO-254 Figure 1. Device configuration ■ Description This power Schottky rectifier is designed and packaged to comply with the ESCC5000 specification for aerospace products. Housed in a hermetically sealed surface mount package, it is ideal for use in applications for aerospace and other harsh environments.
