STPS60SM200C - Power Schottky rectifier

Datasheet Summary

Description

The STPS60SM200C is a dual Schottky rectifier suited for high frequency switched-mode power supply.

Housed in TO-247, this device is especially suited for use in telecom base station SMPS, providing these applications with a good efficiency at both low and high load.

Features

  • High reverse voltage (200 V).
  • Low forward voltage drop.
  • High frequency operation.

📥 Download Datasheet

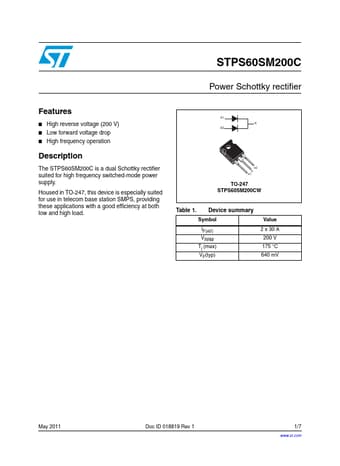

Datasheet preview – STPS60SM200C

Datasheet Details

Part number STPS60SM200C
Manufacturer STMicroelectronics
File Size 77.20 KB
Description Power Schottky rectifier
Datasheet download datasheet STPS60SM200C Datasheet
