STPS6030CW

LOW DROP POWER SCHOTTKY RECTIFIER

STPS6030CW Features

* VERY SMALL CONDUCTION LOSSES NEGLIGIBLE SWITCHING LOSSES EXTREMELY FAST SWITCHING LOW FORWARD VOLTAGE DROP FOR HIGHER EFFICIENCY LOW THERMAL RESISTANCE AVALANCHE CAPABILITY SPECIFIED s s s s s s K A1 TO-247 STPS6030CW DESCRIPTION Dual Schottky rectifier suited for switch Mode Power Supply and hig

STPS6030CW General Description

Dual Schottky rectifier suited for switch Mode Power Supply and high frequency DC to DC converters. Packaged in TO-247, this device is intended for use in low voltage high frequency inverters, free wheeling and polarity protection applications. ABSOLUTE RATINGS (limiting values, per diode) Symbol Pa.

STPS6030CW Datasheet (170.39 KB)

Preview of STPS6030CW PDF

Datasheet Details

Part number:

STPS6030CW

Manufacturer:

STMicroelectronics ↗

File Size:

170.39 KB

Description:

Low drop power schottky rectifier.

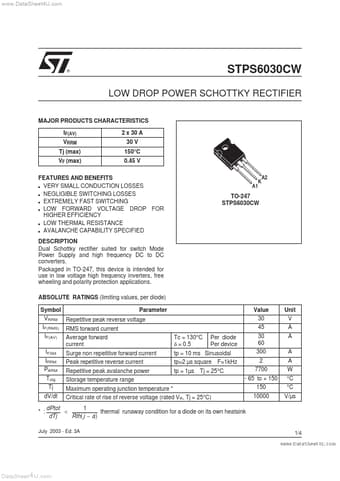

www.DataSheet4U.com ® STPS6030CW LOW DROP POWER SCHOTTKY RECTIFIER MAJOR PRODUCTS CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max) 2 x 30 A 30 V 150°C.
