STPS60L30CW Datasheet PDF - ST Microelectronics LOW DROP POWER SCHOTTKY RECTIFIER Specs

STPS60L30CW - LOW DROP POWER SCHOTTKY RECTIFIER

Datasheet Summary

Description

Dual center tap Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters.

Packaged in TO247, this device is intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection applications.

Features

n VERY SMALL.

Datasheet Details

Part number	STPS60L30CW
Manufacturer	STMicroelectronics
File Size	51.51 KB
Description	LOW DROP POWER SCHOTTKY RECTIFIER
Datasheet	STPS60L30CW Datasheet
Additional preview pages of the STPS60L30CW datasheet.

📁 Similar Datasheet

STPS60170C - High voltage power Schottky rectifier (STMicroelectronics)

STPS60170CT - High voltage power Schottky rectifier (STMicroelectronics)

STPS60170CT - Schottky Barrier Rectifier (Inchange Semiconductor)

STPS6045C - Power Schottky Rectifier (STMicroelectronics)

STPS6045CW - POWER SCHOTTKY RECTIFIER (STMicroelectronics)

STPS6045HR - Aerospace 2 x 30 A - 45 V Schottky rectifier (STMicroelectronics)

STPS60A150CHR - Schottky rectifier (STMicroelectronics)

STPS60SM200C - Power Schottky rectifier (STMicroelectronics)

STPS61150C - power Schottky rectifier (STMicroelectronics)

STPS61150CW - Schottky Barrier Rectifier (INCHANGE)

Full PDF Text Transcription

Click to expand full text

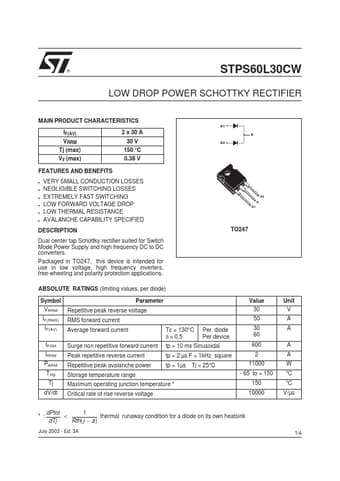

® STPS60L30CW LOW DROP POWER SCHOTTKY RECTIFIER MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max) 2 x 30 A 30 V 150 °C 0.38 V FEATURES AND BENEFITS n VERY SMALL CONDUCTION LOSSES n NEGLIGIBLE SWITCHING LOSSES n EXTREMELY FAST SWITCHING n LOW FORWARD VOLTAGE DROP n LOW THERMAL RESISTANCE n AVALANCHE CAPABILITY SPECIFIED DESCRIPTION Dual center tap Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters. Packaged in TO247, this device is intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection applications.
