STPS60L45CW - LOW DROP POWER SCHOTTKY RECTIFIER

Datasheet Summary

Description

Dual center tap schottky barrier rectifier suited for 5V output in off line AC/DC power supplies.

Packaged in TO-247, this device is intended for use in low voltage, high frequency converters, free wheeling and polarity protection applications.

Features

  • s VERY SMALL.

📥 Download Datasheet

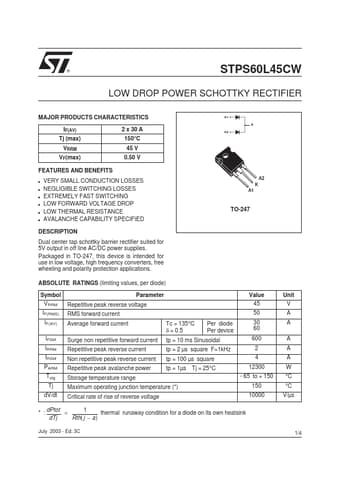

Datasheet preview – STPS60L45CW

Datasheet Details

Part number STPS60L45CW
Manufacturer STMicroelectronics
File Size 66.81 KB
Description LOW DROP POWER SCHOTTKY RECTIFIER
Datasheet download datasheet STPS60L45CW Datasheet
Additional preview pages of the STPS60L45CW datasheet.

📁 Similar Datasheet

  • STPS60170C - High voltage power Schottky rectifier (STMicroelectronics)
  • STPS60170CT - High voltage power Schottky rectifier (STMicroelectronics)
  • STPS60170CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • STPS6045C - Power Schottky Rectifier (STMicroelectronics)
  • STPS6045CW - POWER SCHOTTKY RECTIFIER (STMicroelectronics)
  • STPS6045HR - Aerospace 2 x 30 A - 45 V Schottky rectifier (STMicroelectronics)
  • STPS60A150CHR - Schottky rectifier (STMicroelectronics)
  • STPS60SM200C - Power Schottky rectifier (STMicroelectronics)
  • STPS61150C - power Schottky rectifier (STMicroelectronics)
  • STPS61150CW - Schottky Barrier Rectifier (INCHANGE)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text
® STPS60L45CW LOW DROP POWER SCHOTTKY RECTIFIER MAJOR PRODUCTS CHARACTERISTICS IF(AV) Tj (max) VRRM VF(max) 2 x 30 A 150°C 45 V 0.50 V FEATURES AND BENEFITS s VERY SMALL CONDUCTION LOSSES s NEGLIGIBLE SWITCHING LOSSES s EXTREMELY FAST SWITCHING s LOW FORWARD VOLTAGE DROP s LOW THERMAL RESISTANCE s AVALANCHE CAPABILITY SPECIFIED DESCRIPTION Dual center tap schottky barrier rectifier suited for 5V output in off line AC/DC power supplies. Packaged in TO-247, this device is intended for use in low voltage, high frequency converters, free wheeling and polarity protection applications.
