STPS60H100C - 100V power Schottky rectifier

Datasheet Summary

Description

This dual diode common cathode Schottky rectifier is suited for high frequency switched mode power supplies.

Packaged in TO-220AB, the STPS60H100C is optimized for use to enhance the reliability of the application.

Features

  • High junction temperature capability.
  • Low leakage current.
  • Low thermal resistance.
  • High frequency operation.
  • Avalanche capability.

📥 Download Datasheet

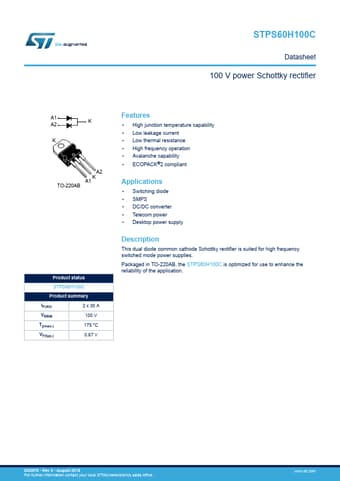

Datasheet preview – STPS60H100C
