STS17NH3LL

N-channel Power MOSFET

STS17NH3LL Features

* Type STS17NH3LL VDSS 30V RDS(on)

STS17NH3LL General Description

This device utilizes the latest advanced design rules of ST’s proprietary STripFET™ technology. This process coupled to unique metallization techniques realizes the most advanced low voltage Power MOSFET in SO-8 ever produced. Internal schematic diagram Applications
* Switching application O.

STS17NH3LL Datasheet (215.62 KB)

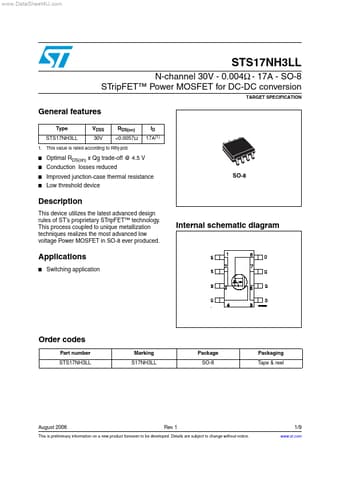

Preview of STS17NH3LL PDF

Datasheet Details

Part number:

STS17NH3LL

Manufacturer:

STMicroelectronics ↗

File Size:

215.62 KB

Description:

N-channel power mosfet.
