STS1DNC45 Datasheet - ST Microelectronics

N-CHANNEL PowerMESH MOSFET

STS1DNC45 General Description

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements .

STS1DNC45 Datasheet (296.52 KB)

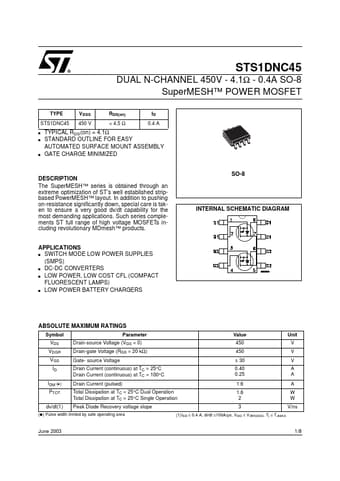

STS1DNC45 Datasheet Preview — Preview of STS1DNC45 PDF

Datasheet Details

Part number:

STS1DNC45

Manufacturer:

STMicroelectronics ↗

File Size:

296.52 KB

Description:

N-channel powermesh mosfet.
STS1DNC45 DUAL N-CHANNEL 450V - 4.1Ω - 0.4A SO-8 SuperMESH™ POWER MOSFET TYPE STS1DNC45 s s VDSS 450 V RDS(on) < 4.5 Ω ID 0.4 A s TYPICAL RDS(on).
