STSMIA832

standard mobile imaging architecture (SMIA) decoder deserializer

STSMIA832 General Description

The STSMIA832 receiver converts the subLVDS clock/datastream (up to 650 Mbps throughput bandwidth) back into parallel 8 bits of CMOS/LVTTL. The device recognizes the SMIA 32 bit start of frame (SOF), end of frame (EOF), start of line (SOL) and end of line (EOL) sequences to generate the H-SYNC and V.

STSMIA832 Datasheet (454.09 KB)

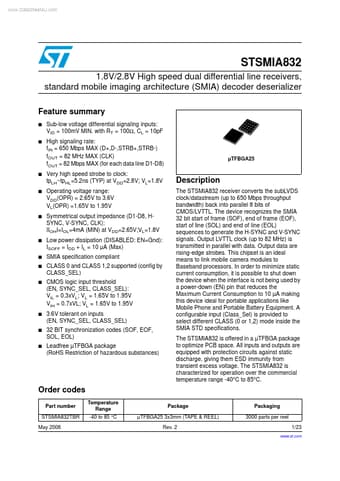

Preview of STSMIA832 PDF

Datasheet Details

Part number:

STSMIA832

Manufacturer:

STMicroelectronics ↗

File Size:

454.09 KB

Description:

Standard mobile imaging architecture (smia) decoder deserializer.
www.DataSheet4U.com STSMIA832 1.8V/2.8V High speed dual differential line receivers, standard mobile imaging architecture (SMIA) decoder deserializer.
