STTH212

High voltage ultrafast diode

STTH212 Features

* Low forward voltage drop

* High reliability

* High surge current capability

* Soft switching for reduced EMI disturbances

* Planar technology Description This device is an ultrafast diode based on a high voltage planar technology, it is perfectly suited for freewheeling, clamp

STTH212 General Description

This device is an ultrafast diode based on a high voltage planar technology, it is perfectly suited for freewheeling, clamping, snubbering, demagnetization in power supplies and other power switching applications. Housed in SMB and SMC packages, this diode reduces the losses in high switching frequ.

STTH212 Datasheet (380.04 KB)

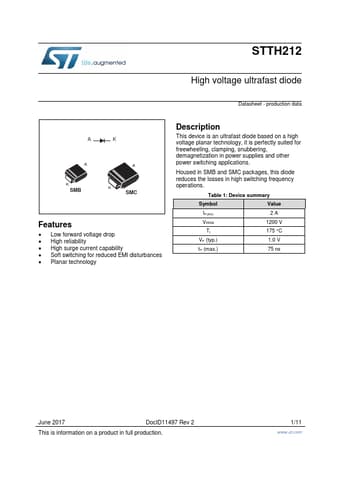

Preview of STTH212 PDF

Datasheet Details

Part number:

STTH212

Manufacturer:

STMicroelectronics ↗

File Size:

380.04 KB

Description:

High voltage ultrafast diode.
