STTH506 Datasheet, Rectifier, ST Microelectronics

STTH506 Features

  • Rectifier
  • Ultrafast switching
  • Low reverse current
  • Low thermal resistance
  • Reduces conduction and switching losses
  • ECOPACK®2 compliant component fo

PDF File Details

Part number:

STTH506

Manufacturer:

STMicroelectronics ↗

File Size:

207.05kb

Download:

📄 Datasheet

Description:

Turbo 2 ultrafast high voltage rectifier. The STTH506 is developed using ST’s Turbo 2 600 V technology. It is well-suited for use in switching power supplies and industrial ap

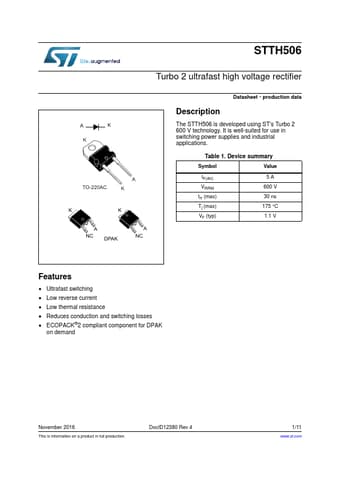

Datasheet Preview: STTH506 📥 Download PDF (207.05kb)
Page 2 of STTH506 Page 3 of STTH506

STTH506 Application

  • Applications Table 1. Device summary Symbol Value IF(AV) VRRM trr (max) Tj (max) VF (typ) 5A 600 V 30 ns 175 °C 1.1 V Features
