STTH5R06B Datasheet, Rectifier, STMicroelectronics

STTH5R06B Features

  • Rectifier
  • Ultrafast switching
  • Low reverse recovery current
  • Reduces switching losses
  • Low thermal resistance
  • Insulated package: TO-220FPAC  Insula

PDF File Details

Part number:

STTH5R06B

Manufacturer:

STMicroelectronics ↗

File Size:

664.57kb

Download:

📄 Datasheet

Description:

Turbo 2 ultrafast high voltage rectifier. The device is developed using ST's Turbo 2 600 V technology. It is well-suited as a boost diode, especially for use in continuous mod

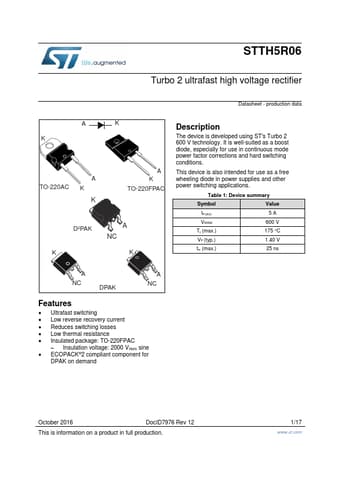

Datasheet Preview: STTH5R06B 📥 Download PDF (664.57kb)
Page 2 of STTH5R06B Page 3 of STTH5R06B

STTH5R06B Application

  • Applications Table 1: Device summary Symbol Value IF(AV) VRRM Tj (max.) VF (typ.) trr (max.) 5A 600 V 175 °C 1.40 V 25 ns A NC DPAK A NC F
