STTH5R06DJF

ultrafast recovery diode high efficiency

STTH5R06DJF Features

* Suited for DC/DC converts

* Low losses

* High Tj

* High surge current capability

* High energy avalanche capability

* High integration

* Thin package: 1 mm

* ECOPACK2 compliant Applications

* Switching diode

STTH5R06DJF General Description

High performance diode suited for high frequency DC to DC converters. Packaged in PowerFLAT 5x6, the STTH5R06DJF is optimized for use in low voltage high frequency inverters, free-wheeling and polarity protection applications. Its low profile was especially designed to be used in applications with .

STTH5R06DJF Datasheet (331.72 KB)

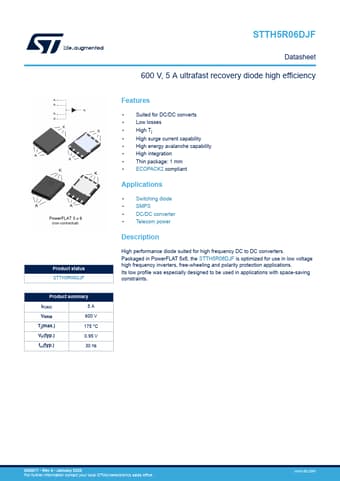

Preview of STTH5R06DJF PDF

Datasheet Details

Part number:

STTH5R06DJF

Manufacturer:

STMicroelectronics ↗

File Size:

331.72 KB

Description:

Ultrafast recovery diode high efficiency.
Product status STTH5R06DJF Product summary IF(AV) 5A VRRM 600 V Tj(max.) 175 °C VF(typ.) 0.95 V trr(typ.) 30 ns STTH5R06DJF Datasheet 600 .
