STTH512 Datasheet - ST Microelectronics

Ultrafast recovery diode

STTH512 Features

* K A NC DPAK STTH512B Ultrafast, soft recovery Very low conduction and switching losses High frequency and/or high pulsed current operation High reverse voltage capability High junction temperature Insulated package: TO-220FPAC Electrical insulation = 2000 VRMS C

STTH512 General Description

The high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy duty applications that demand long term reliability. Such demanding applications include industrial pow.

STTH512 Datasheet (145.97 KB)

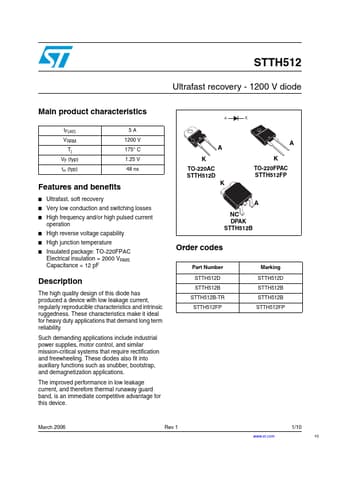

STTH512 Datasheet Preview — Preview of STTH512 PDF

Datasheet Details

Part number:

STTH512

Manufacturer:

STMicroelectronics ↗

File Size:

145.97 KB

Description:

Ultrafast recovery diode.
www.DataSheet4U.com STTH512 Ultrafast recovery - 1200 V diode Main product characteristics A K IF(AV) VRRM Tj VF (typ) trr (typ) 5A 1200 V 175° C 1.
