STTH5L06 Datasheet, Rectifier, ST Microelectronics

STTH5L06 Features

  • Rectifier
  • Ultrafast switching
  • Low reverse recovery current
  • Reduces switching losses
  • Low thermal resistance
  • Insulated package: TO-220FPAC  Insula

PDF File Details

Part number:

STTH5L06

Manufacturer:

STMicroelectronics ↗

File Size:

560.20kb

Download:

📄 Datasheet

Description:

Turbo 2 ultrafast high voltage rectifier. The device is developed using ST's Turbo 2 600 V technology. It is well-suited as a boost diode, especially for use in continuous mod

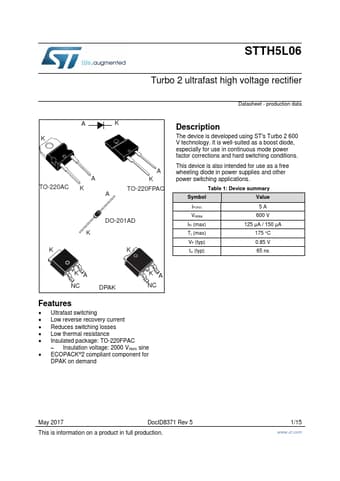

Datasheet Preview: STTH5L06 📥 Download PDF (560.20kb)
Page 2 of STTH5L06 Page 3 of STTH5L06

STTH5L06 Application

  • Applications Table 1: Device summary Symbol Value IF(AV) VRRM IR (max) Tj (max) VF (typ) trr (typ) 5A 600 V 125 µA / 150 µA 175 °C 0.85 V 65 n
