STTH8L06FP Datasheet, Rectifier, ST Microelectronics

STTH8L06FP Features

  • Rectifier s s 8A 600 V 200 µA 175 °C 1.05 V 105 ns TO-220AC STTH8L06D K A s s Ultrafast switching Low reverse recovery current Reduces switching & conduction losses Low thermal resistance DE

PDF File Details

Part number:

STTH8L06FP

Manufacturer:

STMicroelectronics ↗

File Size:

86.53kb

Download:

📄 Datasheet

Description:

Turbo 2 ultrafast high voltage rectifier. The STTH8L06FP, which is using ST Turbo2 600V technology, is specially suited as boost diode in discontinuous or critical mode power

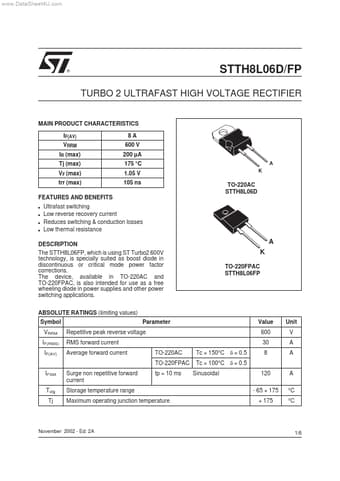

Datasheet Preview: STTH8L06FP 📥 Download PDF (86.53kb)
Page 2 of STTH8L06FP Page 3 of STTH8L06FP

STTH8L06FP Application

  • Applications ABSOLUTE RATINGS (limiting values) Symbol VRRM IF(RMS) IF(AV) Parameter Repetitive peak reverse voltage RMS forward current Average fo
