STW9NK90Z Datasheet, Mosfet, ST Microelectronics

STW9NK90Z Features

  • Mosfet Type STB9NK90Z STW9NK90Z STP9NK90Z STF9NK90Z VDSS 900V RDS(on) max. ID <1.3Ω 8A Pw 160 W 160 W 160 W 40 W
  • Extremely high dv/dt capability
  • 100% avalanche teste

PDF File Details

Part number:

STW9NK90Z

Manufacturer:

STMicroelectronics ↗

File Size:

667.51kb

Download:

📄 Datasheet

Description:

N-channel mosfet. The SuperMESH™ series is obtained through an optimization of STMicroelectronics’ wellestablished strip-based PowerMESH™ layout. In a

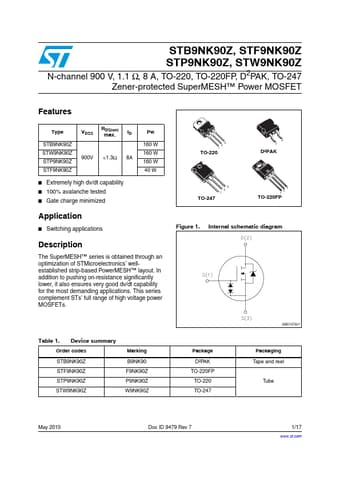

Datasheet Preview: STW9NK90Z 📥 Download PDF (667.51kb)
Page 2 of STW9NK90Z Page 3 of STW9NK90Z

STW9NK90Z Application

  • Applications Description The SuperMESH™ series is obtained through an optimization of STMicroelectronics’ wellestablished strip-based PowerMESH™ l
