* Order code STP9N80K5 STW9N80K5 VDS 800 V RDS(on) max. 0.90 Ω ID 7A
* Industry’s lowest RDS(on) x area
* Industry’s best FoM (figure of merit)
* Ultra-low gate charge
* 100% avalanche tested
* Zener-protected Applications
* Switching applications Description These very hig
STW9N80K5 Datasheet (625.57 KB)
STW9N80K5
625.57 KB
N-channel power mosfet.
STP9N80K5, STW9N80K5

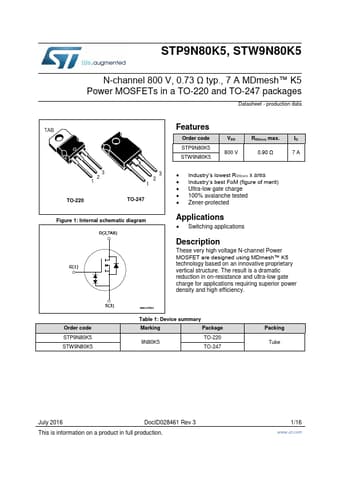

N-channel 800 V, 0.73 Ω typ., 7 A MDmesh™ K5 Power MOSFETs in a TO-220 and TO-247 packages
Datasheet - production data
TAB
3 2.
