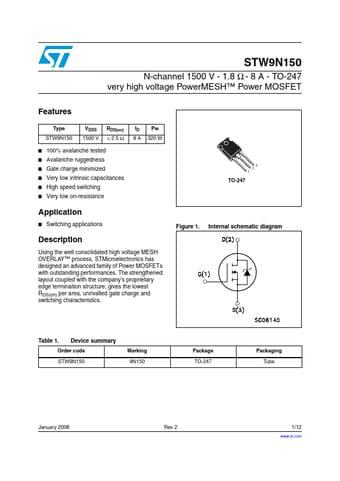

STW9N150 Datasheet, Mosfet, ST Microelectronics

STW9N150 Features

• Mosfet Type STW9N150
• VDSS 1500V RDS(on) < 2.7Ω ID 8A Pw 350W 100% avalanche tested Avalanche ruggedness Gate charge minimized V

PDF File Details

Part number:

STW9N150

Manufacturer:

STMicroelectronics ↗

File Size:

237.46kb

Download:

📄 Datasheet

Description:

N-channel mosfet. Using the well consolidated high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of Power MOSFETs w

STW9N150 Application

• Applications
• Switching application Order code Part number STW9N150 Marking W9N150V Package TO-247 Packaging Tube May 2007 Rev 1 1/9 w
