STW9NC70Z Datasheet - ST Microelectronics

STW9NC70Z N-channel MOSFET

The third generation of MESH OVERLAY ™ Power MOSFETs for very high voltage exhibits unsurpassed on-resistance per unit area while integrating back-to-back Zener diodes between gate and source. Such arrangement gives extra ESD capability with higher ruggedness performance as requested by a large vari.

STW9NC70Z Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to souce. In this respect the 25V Zener vo

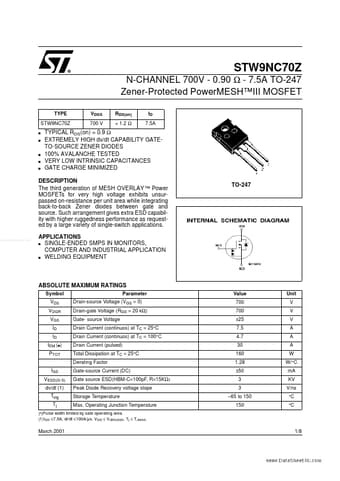

STW9NC70Z Datasheet (201.40 KB)

STW9NC70Z Datasheet Preview — Preview of STW9NC70Z PDF

Datasheet Details

Part number:

STW9NC70Z

Manufacturer:

STMicroelectronics ↗

File Size:

201.40 KB

Description:

N-channel mosfet.
