STW9NC80Z - N-Channel MOSFET

Name: STW9NC80Z
SKU: STW9NC80Z-501294

ST Microelectronics

📥 Download Datasheet

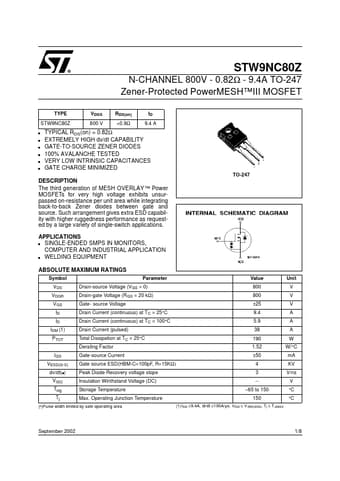

STW9NC80Z Datasheet Preview — Preview of STW9NC80Z PDF

Datasheet Details

Part number	STW9NC80Z
Manufacturer	STMicroelectronics
File Size	248.02 KB
Description	N-Channel MOSFET
Datasheet	STW9NC80Z_STMicroelectronics.pdf

STW9NC80Z Product details

Description

The third generation of MESH OVERLAY ™ Power MOSFETs for very high voltage exhibits unsurpassed on-resistance per unit area while integrating back-to-back Zener diodes between gate and source.

Features

OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the 25V Zener voltage is appropriate to achieve an efficient and cost-effective intervention to protect the device’s integrity. These integrated Zener diodes thus avoid the usage of external components. 3/8 STW9NC.
