STW9NB80 N-CHANNEL 800V - 0.85ohm - 9.3A - TO-247 PowerMESH MOSFET

ST Microelectronics

Description

® STW9NB80 N-CHANNEL 800V - 0.85Ω - 9.3A - TO-247 PowerMESH™ MOSFET TYPE STW 9NB80 s s s s s s V DSS 800 V R DS(on) <1Ω ID 9.3 A TYPICAL RDS(on).
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

📥 Download Datasheet

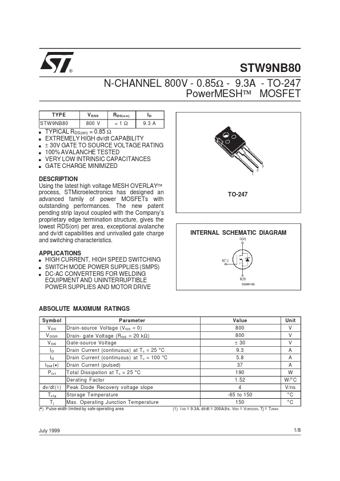

STW9NB80 Datasheet Preview — Preview of STW9NB80 PDF

Datasheet Specifications

Part number: STW9NB80
Manufacturer: STMicroelectronics ↗
File Size: 86.48 KB
Datasheet: STW9NB80_STMicroelectronics.pdf
Description: N-CHANNEL 800V - 0.85ohm - 9.3A - TO-247 PowerMESH MOSFET

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE TO-247 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID I DM (
