STW9NA80 Datasheet (ST Microelectronics)

STW9NA80, N-Channel 800V MOSFET

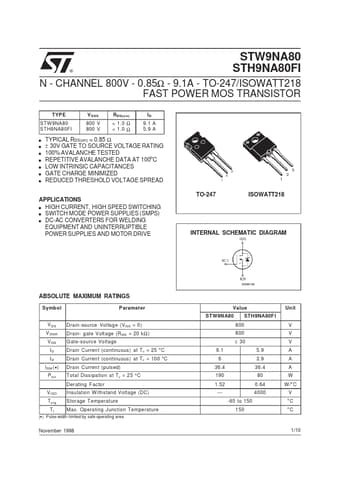

® STW9NA80 STH9NA80FI N - CHANNEL 800V - 0.85Ω - 9.1A - TO-247/ISOWATT218 FAST POWER MOS TRANSISTOR TYPE STW 9NA80 STH9NA80FI s s s s s s s V DSS 800 V 800 V R DS(on) < 1.0 Ω < 1.0 Ω ID 9.1 A 5.9 A TYPICAL RDS(on) = 0.85 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW INTRINSIC CAPACITANCES GATE CHARGE MINIMIZED REDUCED THRESHOLD VOLTAGE SPREAD TO-247 3 2 1 3 2 1 ISOWATT218 APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MOD
