GD100PIA120C6SN Datasheet - STARPOWER

GD100PIA120C6SN, IGBT

GD100PIA120C6SN STARPOWER SEMICONDUCTOR GD100PIA120C6SN 1200V/100A PIM in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

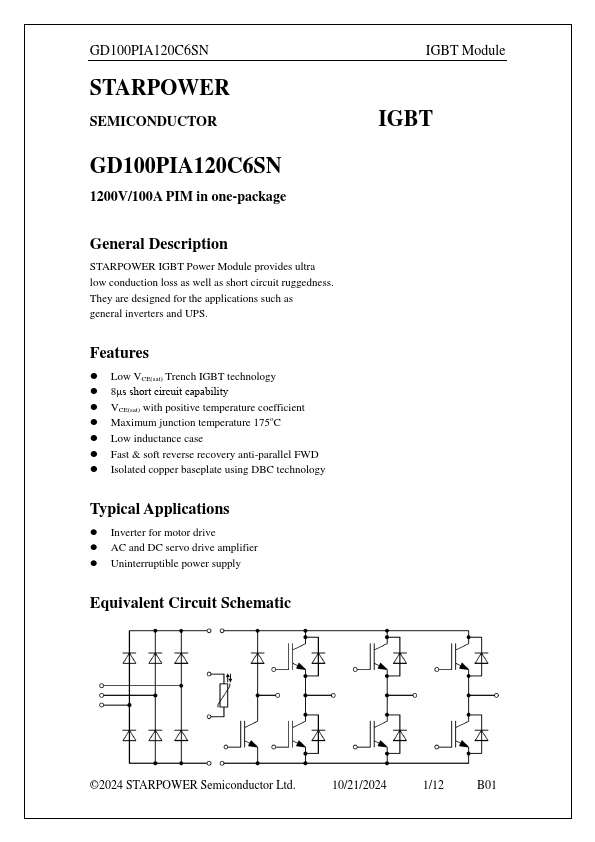

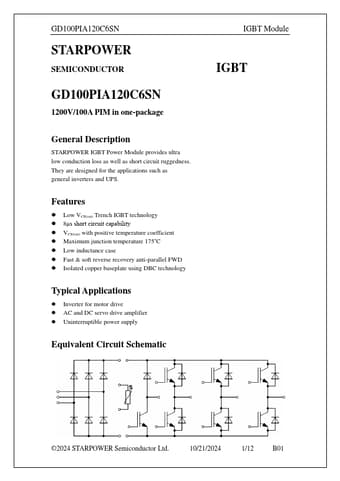

datasheet Preview Page 1 from Datasheet4u.com

GD100PIA120C6SN-STARPOWER.pdf

GD100PIA120C6SN Datasheet Preview — Preview of GD100PIA120C6SN PDF

Datasheet Details

Part number:

GD100PIA120C6SN

Manufacturer:

STARPOWER

File Size:

554.37 KB

Description:

IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 8μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technolo
