GD100PIY120C6SNF Datasheet - STARPOWER

GD100PIY120C6SNF, IGBT

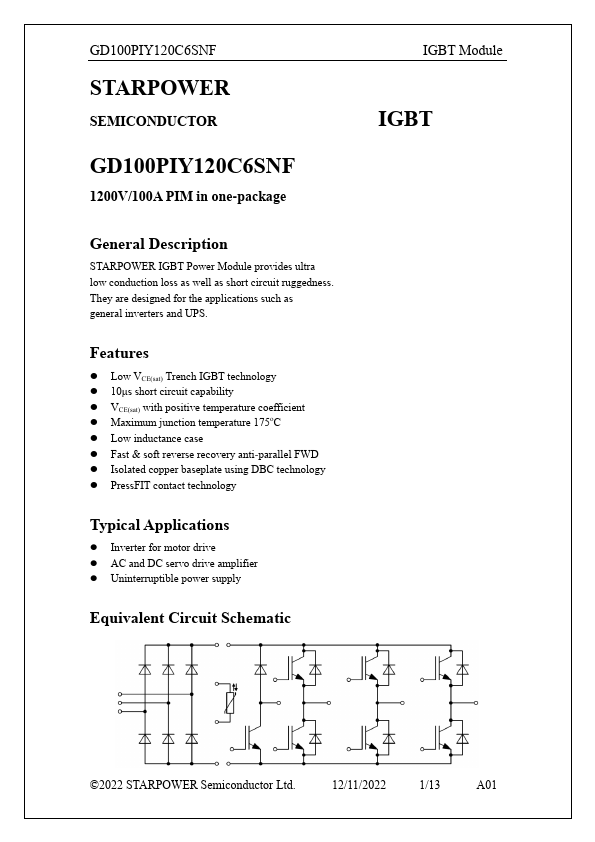

GD100PIY120C6SNF STARPOWER SEMICONDUCTOR GD100PIY120C6SNF 1200V/100A PIM in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

datasheet Preview Page 1 from Datasheet4u.com

GD100PIY120C6SNF-STARPOWER.pdf

GD100PIY120C6SNF Datasheet Preview — Preview of GD100PIY120C6SNF PDF

Datasheet Details

Part number:

GD100PIY120C6SNF

Manufacturer:

STARPOWER

File Size:

727.35 KB

Description:

IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 10μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technol
