GD100PIT120C6SN_G8 IGBT

📥 Download Datasheet Datasheet Preview Page 1

Description

GD100PIT120C6SN_G8 STARPOWER SEMICONDUCTOR GD100PIT120C6SN_G8 Molding Type Module 1200V/100A PIM in one-package IGBT Module IGBT General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

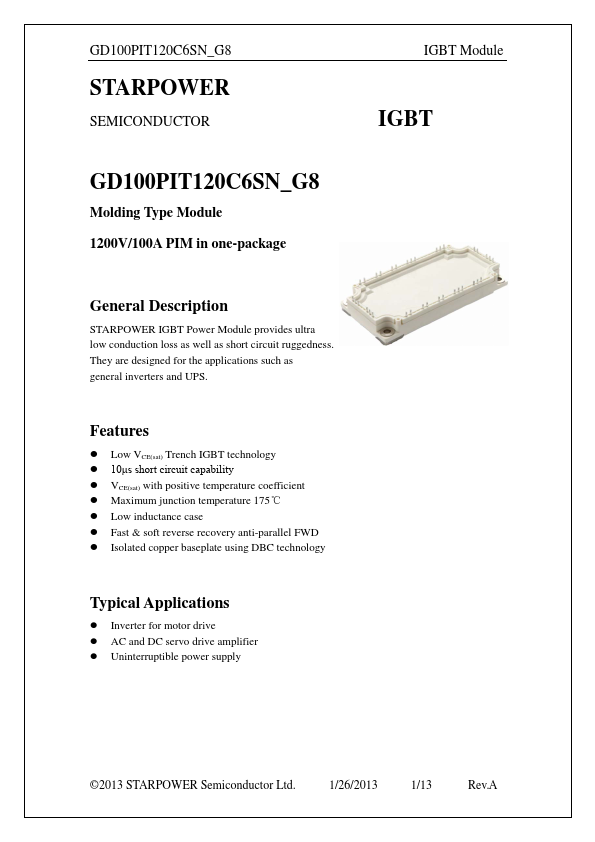

Preview of GD100PIT120C6SN_G8 PDF

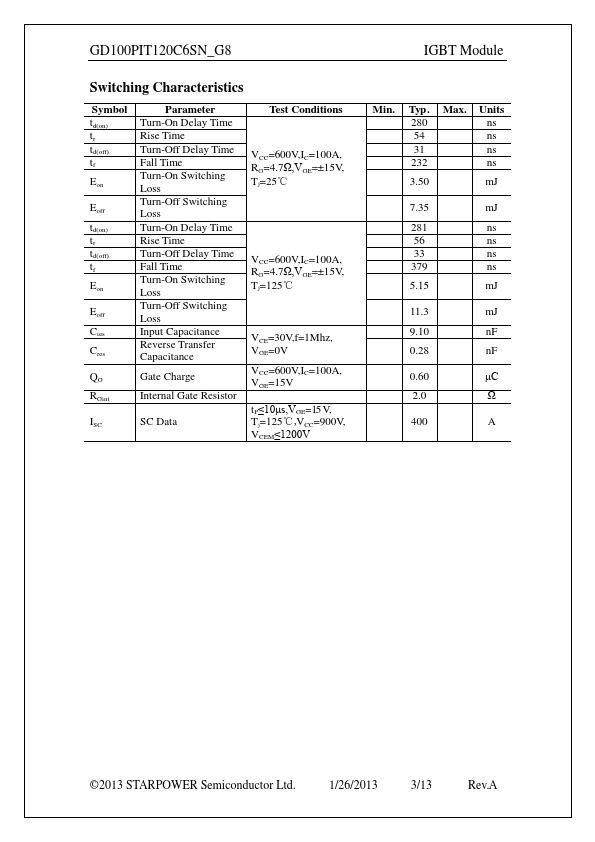

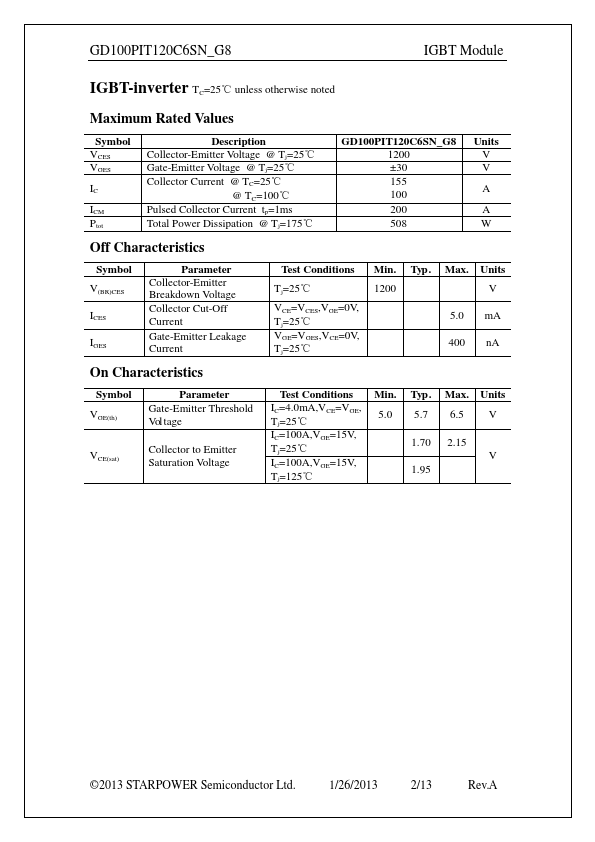

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Low VCE(sat) Trench IGBT technology
* 10μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175℃
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technolo
