GD100PIX120C6SN - IGBT

STARPOWER

The GD100PIX120C6SN by STARPOWER is a IGBT. Below is the official datasheet preview.

📥 Download Datasheet

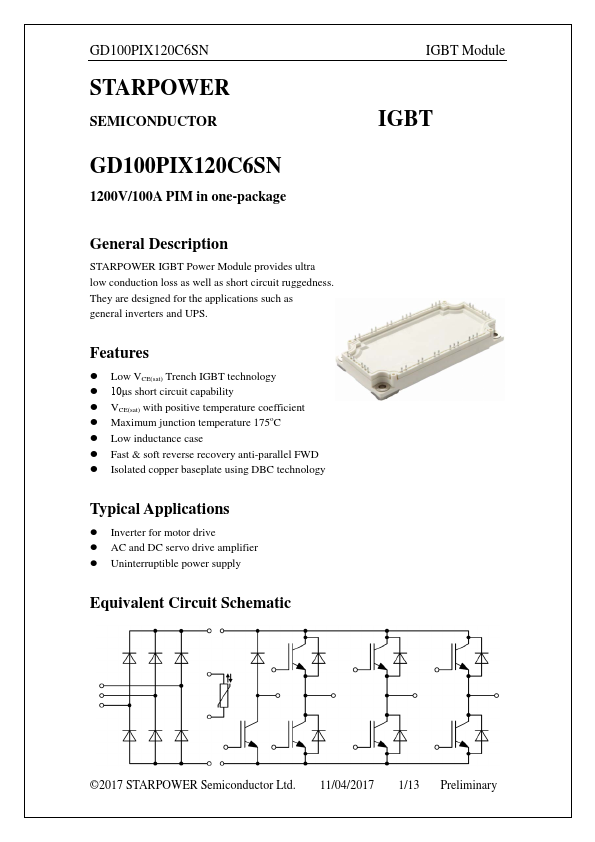

GD100PIX120C6SN IGBT by STARPOWER - Datasheet Preview — Official preview page of the GD100PIX120C6SN IGBT datasheet (STARPOWER).

Datasheet Details

Part number	GD100PIX120C6SN
Manufacturer	STARPOWER
File Size	255.85 KB
Description	IGBT
Datasheet	GD100PIX120C6SN-STARPOWER.pdf

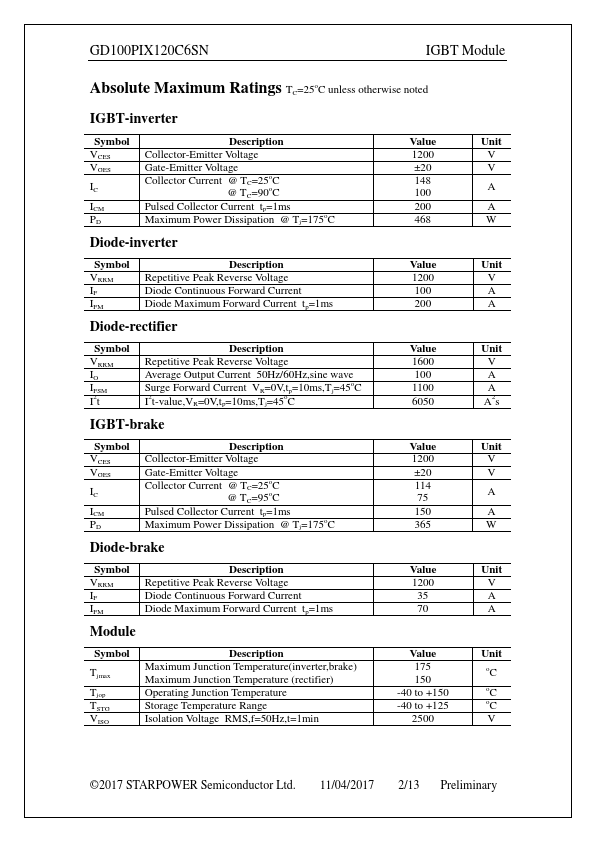

Additional preview pages of the GD100PIX120C6SN datasheet.

GD100PIX120C6SN Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
