18N65M5

N-Channel Power MOSFET

STMicroelectronics

18N65M5 Features

* Order code VDS RDS(on) max. ID STL18N65M5 650 V 240 mΩ 15 A

* Extremely low RDS(on)

* Low gate charge and input capacitance

* Excellent switching performance

* 100% avalanche tested Applications G(4)

* Switching applications S(1, 2, 3) NG4D5678S1

18N65M5 General Description

This device is an N-channel Power MOSFET based on the MDmesh M5 innovative vertical process technology combined with the well-known PowerMESH horizontal layout. The resulting product offers extremely low on-resistance, making it particularly suitable for applications requiring high power and superio.

18N65M5 Datasheet (682.51 KB)

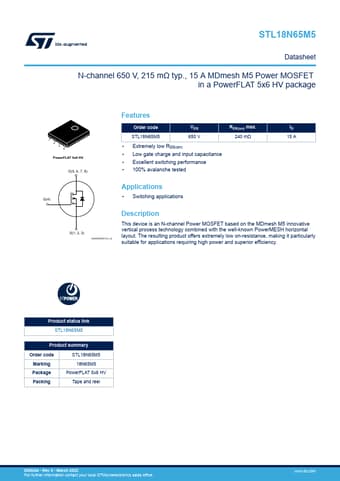

18N65M5 Datasheet Preview — Preview of 18N65M5 PDF

Datasheet Details

Part number:

18N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

682.51 KB

Description:

N-channel power mosfet.
STL18N65M5 Datasheet N-channel 650 V, 215 mΩ typ., 15 A MDmesh M5 Power MOSFET in a PowerFLAT 5x6 HV package 1 2 3 4 PowerFLAT 5x6 HV D(5, 6, 7, 8) .
