* Low on voltage drop (VCE(sat))
* Low CRES / CIES ratio (no cross-conduction susceptibility)
* Short-circuit withstand time 10 μs
* IGBT co-packaged with ultrafast free- wheeling diode Applications
* High frequency inverters
* Motor drives Description These devices are very
GB19NC60KD Datasheet (1.03 MB)
GB19NC60KD
1.03 MB
600v short-circuit rugged igbt.

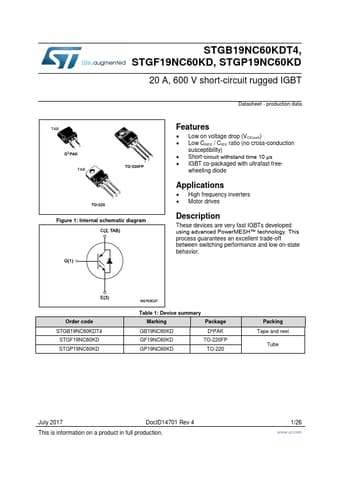

STGB19NC60KDT4, STGF19NC60KD, STGP19NC60KD
20 A, 600 V short-circuit rugged IGBT
Datasheet - production data
TAB
3 1
D2 PAK
TAB
3 2 1 TO-220FP
TO-.
