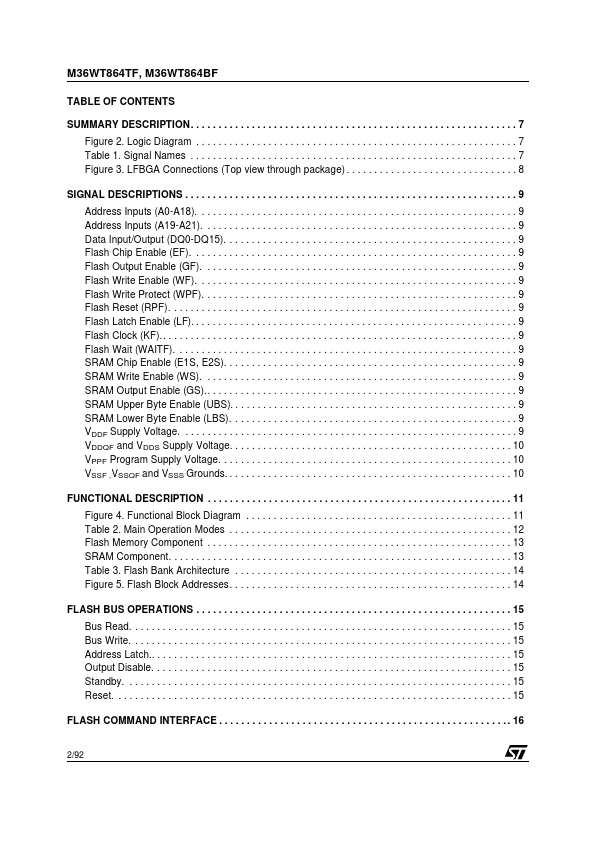

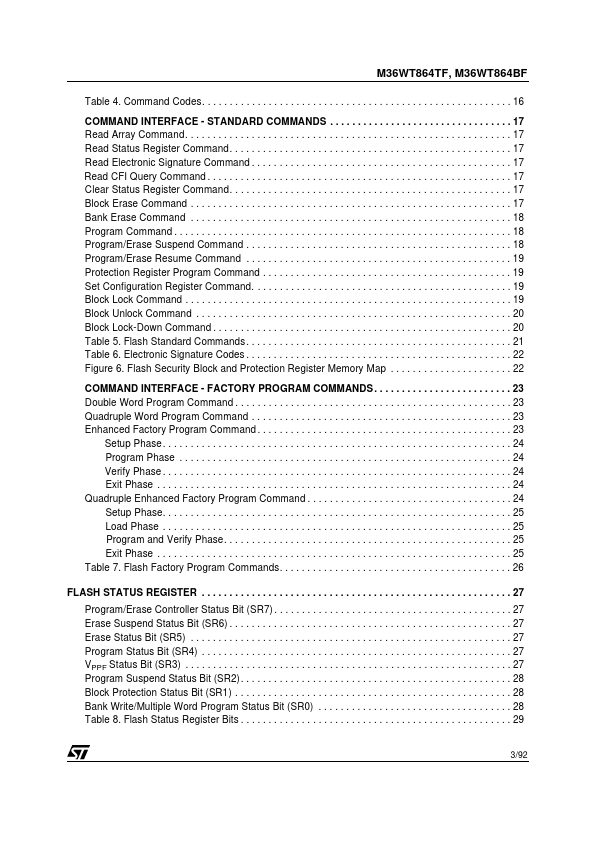

M36WT864BF, M36WT864TF Datasheet - STMicroelectronics

M36WT864TF-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: M36WT864BF, M36WT864TF. Please refer to the document for exact specifications by model.
M36WT864BF Datasheet Preview Page 2 M36WT864BF Datasheet Preview Page 3

Datasheet Details

Part number:

M36WT864BF, M36WT864TF

Manufacturer:

STMicroelectronics ↗

File Size:

618.61 KB

Description:

64-mbit flash memory and 8-mbit sram.

Note:

This datasheet PDF includes multiple part numbers: M36WT864BF, M36WT864TF.
Please refer to the document for exact specifications by model.

M36WT864BF, M36WT864TF, 64-Mbit Flash Memory and 8-Mbit SRAM

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

7 Figure 2.

Logic Diagram .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

7 Table 1.

Signal Names .

.

.

.

.

.

.

.

M36WT864BF Features

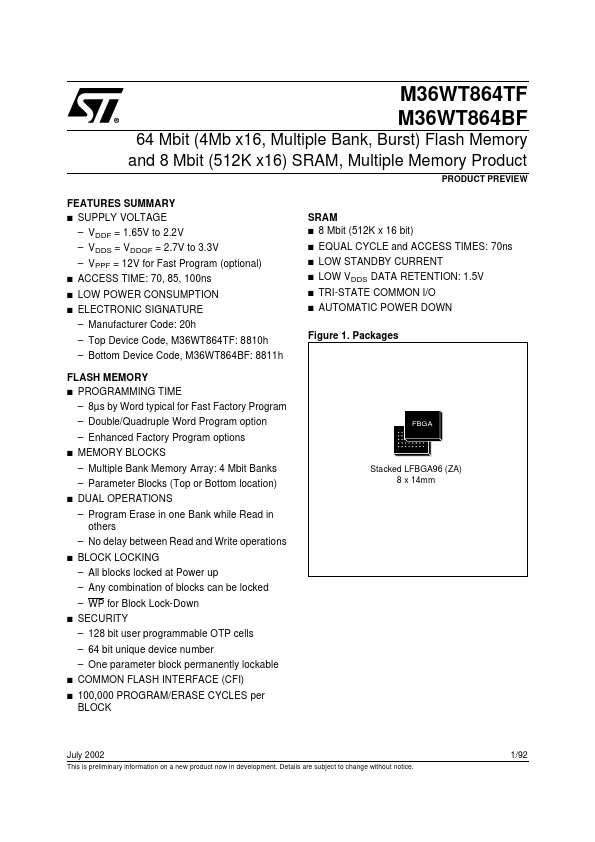

* SUMMARY s SUPPLY VOLTAGE

* VDDF = 1.65V to 2.2V

* VDDS = VDDQF = 2.7V to 3.3V

* VPPF = 12V for Fast Program (optional) s ACCESS TIME: 70, 85, 100ns s LOW POWER CONSUMPTION s ELECTRONIC SIGNATURE

* Manufacturer Code: 20h

* Top Device Code, M36WT864TF: 8810h
