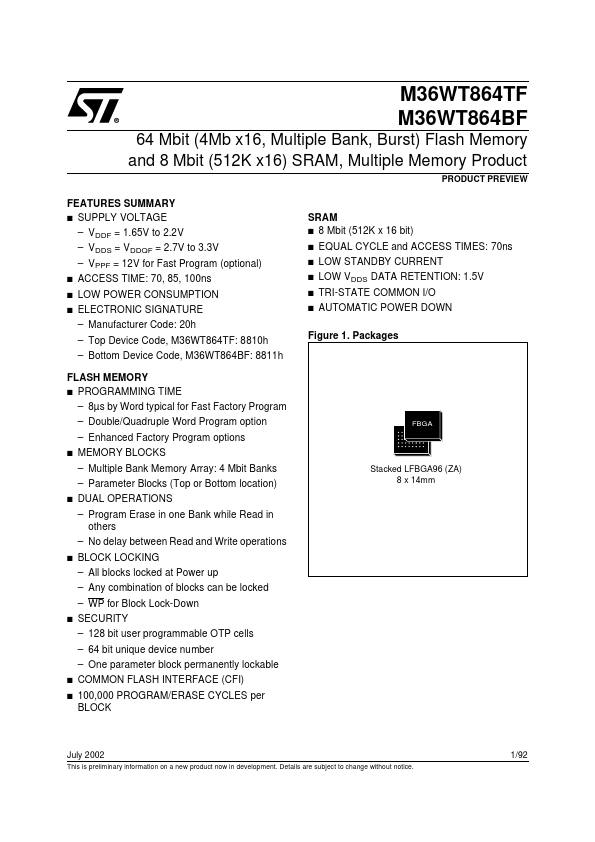

M36WT864TF Datasheet Preview — Preview of M36WT864TF PDF

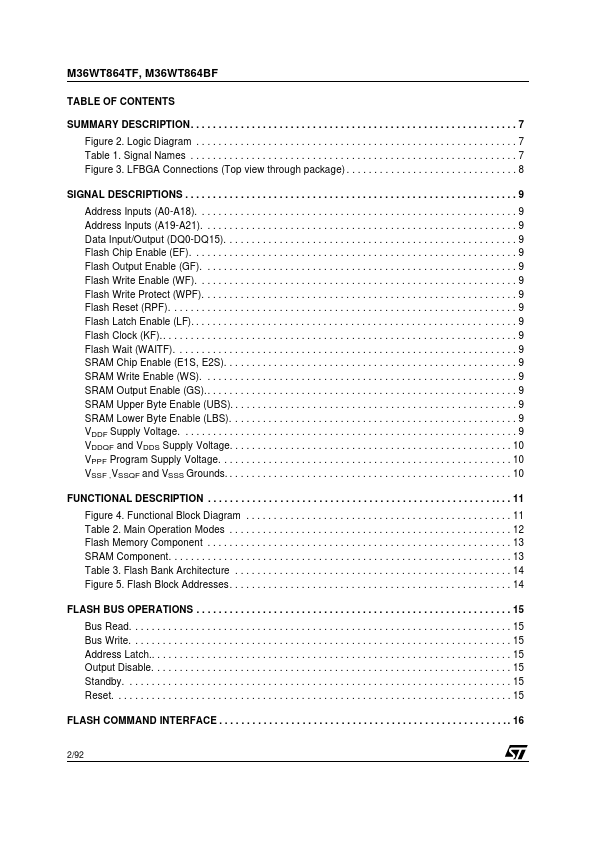

M36WT864TF Datasheet Preview Page 2

M36WT864TF Datasheet Preview Page 3

Datasheet Details

Part number:

M36WT864TF

Manufacturer:

STMicroelectronics ↗

File Size:

618.61 KB

Description:

64-mbit flash memory and 8-mbit sram.

M36WT864TF, 64-Mbit Flash Memory and 8-Mbit SRAM

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

7 Figure 2.

Logic Diagram .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

7 Table 1.

Signal Names .

.

.

.

.

.

.

.

M36WT864TF Features

* SUMMARY s SUPPLY VOLTAGE

* VDDF = 1.65V to 2.2V

* VDDS = VDDQF = 2.7V to 3.3V

* VPPF = 12V for Fast Program (optional) s ACCESS TIME: 70, 85, 100ns s LOW POWER CONSUMPTION s ELECTRONIC SIGNATURE

* Manufacturer Code: 20h

* Top Device Code, M36WT864TF: 8810h
