PD57006-E Datasheet, Transistor, STMicroelectronics

PD57006-E Features

• Transistor
• Excellent thermal stability
• Common source configuration
• POUT = 6 W with 15dB gain @ 945 MHz / 28 V
• New RF plastic package Description The device

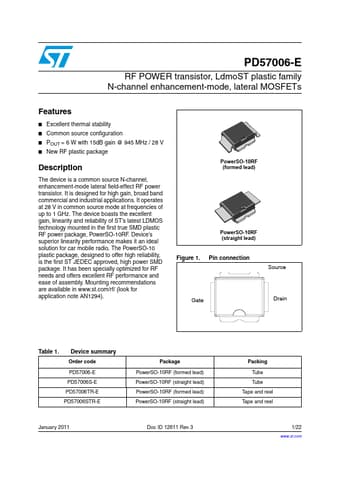

PDF File Details

Part number:

PD57006-E

Manufacturer:

STMicroelectronics ↗

File Size:

495.07kb

Download:

📄 Datasheet

Description:

Rf power transistor. The device is a common source N-channel, enhancement-mode lateral field-effect RF power transistor. It is designed for high gain, bro

PD57006-E Application

• Applications It operates at 28 V in common source mode at frequencies of up to 1 GHz. The device boasts the excellent gain, linearity and reliabili
