PD57006S-E, PD57006-E RF POWER transistor

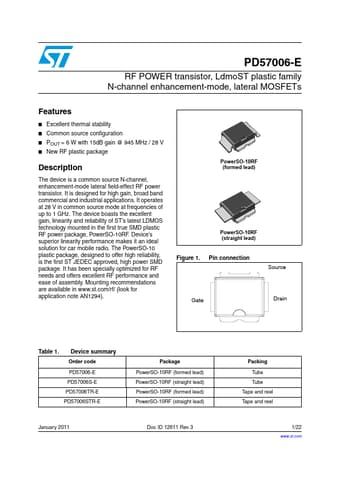

📥 Download Datasheet  Datasheet Preview Page 1

Description

PD57006-E RF POWER transistor, LdmoST plastic family N-channel enhancement-mode, lateral MOSFETs .
The device is a common source N-channel, enhancement-mode lateral field-effect RF power transistor.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PD57006S-E, PD57006-E. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PD57006S-E, PD57006-E
Manufacturer
STMicroelectronics ↗
File Size
495.07 KB
Datasheet
PD57006-E-STMicroelectronics.pdf
Description
RF POWER transistor
Note
This datasheet PDF includes multiple part numbers: PD57006S-E, PD57006-E.
Please refer to the document for exact specifications by model.

Features

* Excellent thermal stability
* Common source configuration
* POUT = 6 W with 15dB gain @ 945 MHz / 28 V

Applications

* It operates at 28 V in common source mode at frequencies of up to 1 GHz. The device boasts the excellent gain, linearity and reliability of ST’s latest LDMOS technology mounted in the first true SMD plastic RF power package, PowerSO-10RF. Device’s superior linearity performance makes it an ideal so
